SPECIFICATIONS

Brand Name: rctosky

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Carbon Fiber

Model Number: APEX 5inch Frame

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: AXLE

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Size: APEX 5inch Frame

Technical parameters: KV1100

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

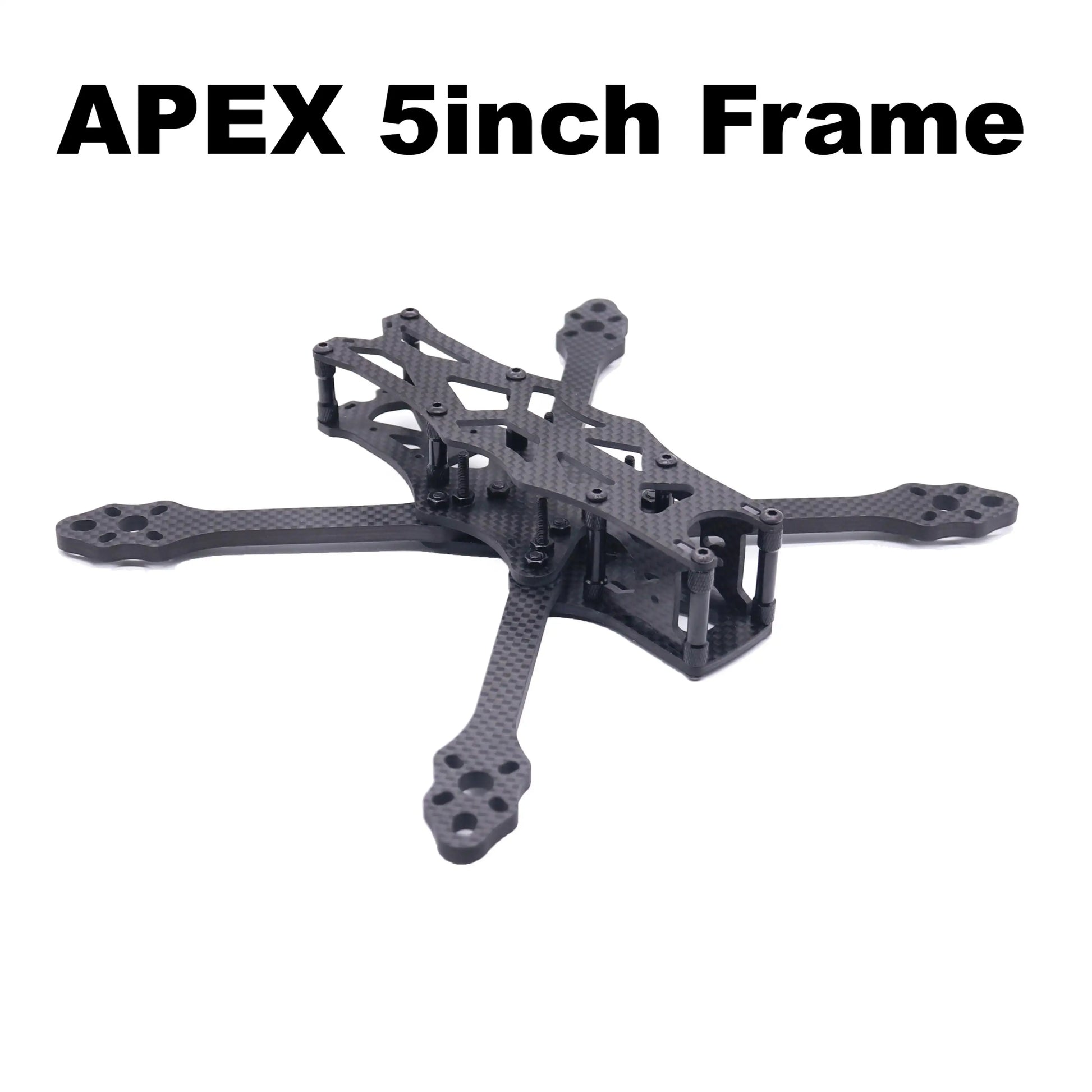

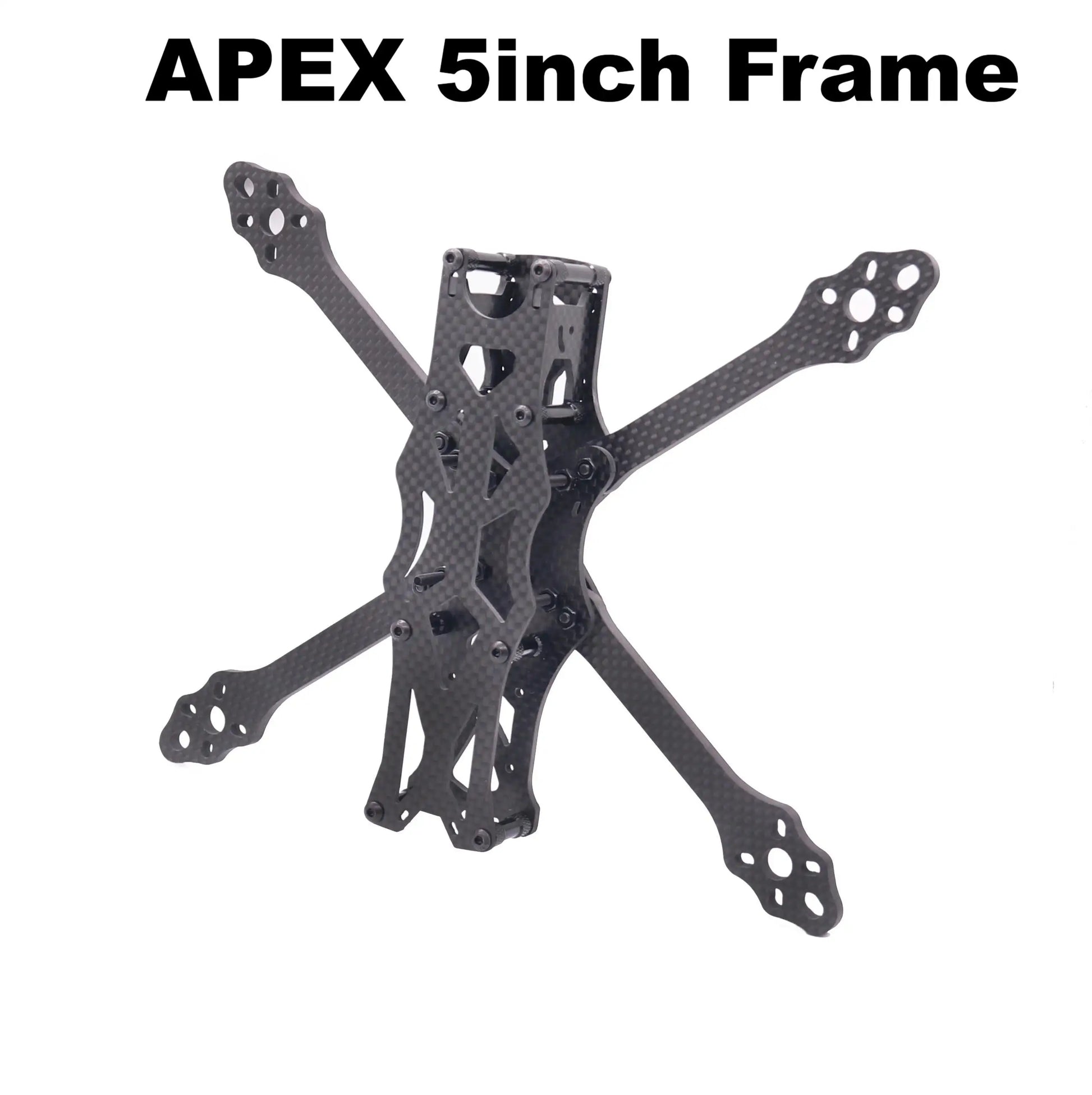

APEX 5inch Frame

Wheelbase: 215mm (4inch)
Weight: Approximately 115g (including printed copies)
Thickness: Bottom plate 3.0mm, upper plate 2.0mm, arm 5.0mm
Paddle: 5-inch paddle
Flight control hole spacing: 30.6 * 30.6mm (M3)
Hole spacing for image transmission: 20 * 20mm (M2)
Camera installation width: 19mm
Motor installation hole positions: 9 * 9mm (M2) and 12mm * 12mm (M2)
Battery: 3S/4S 2600mAh

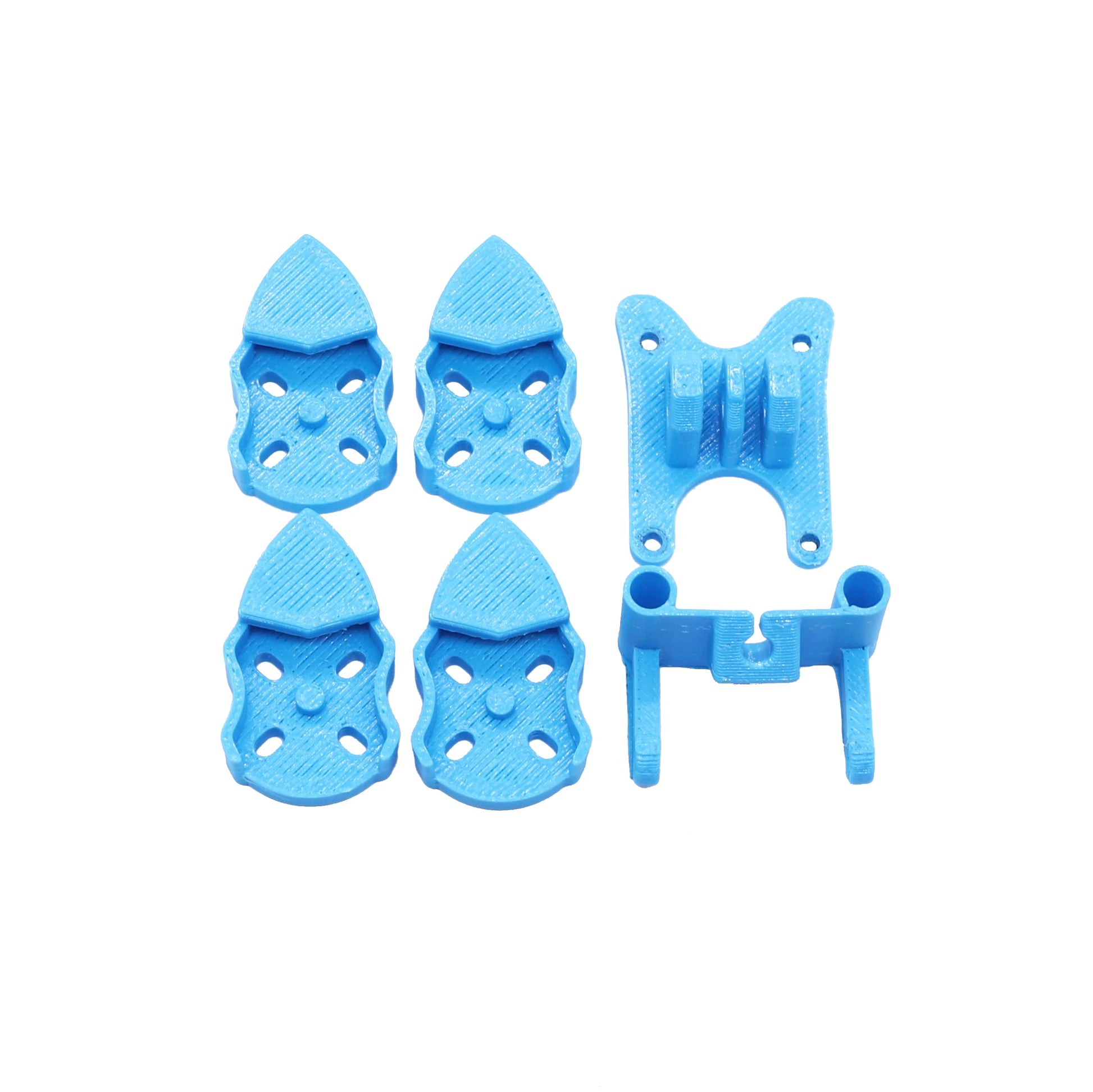

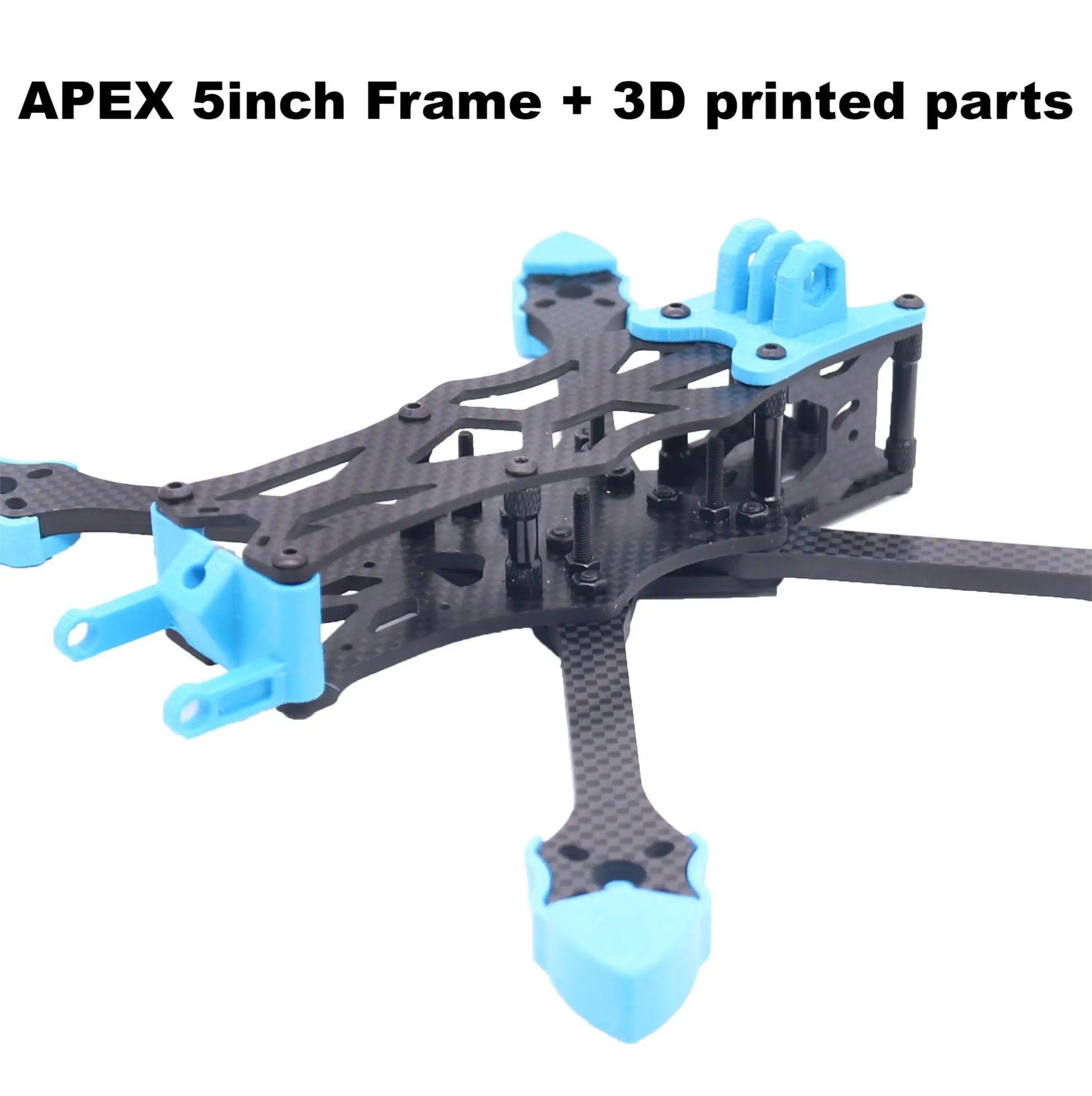

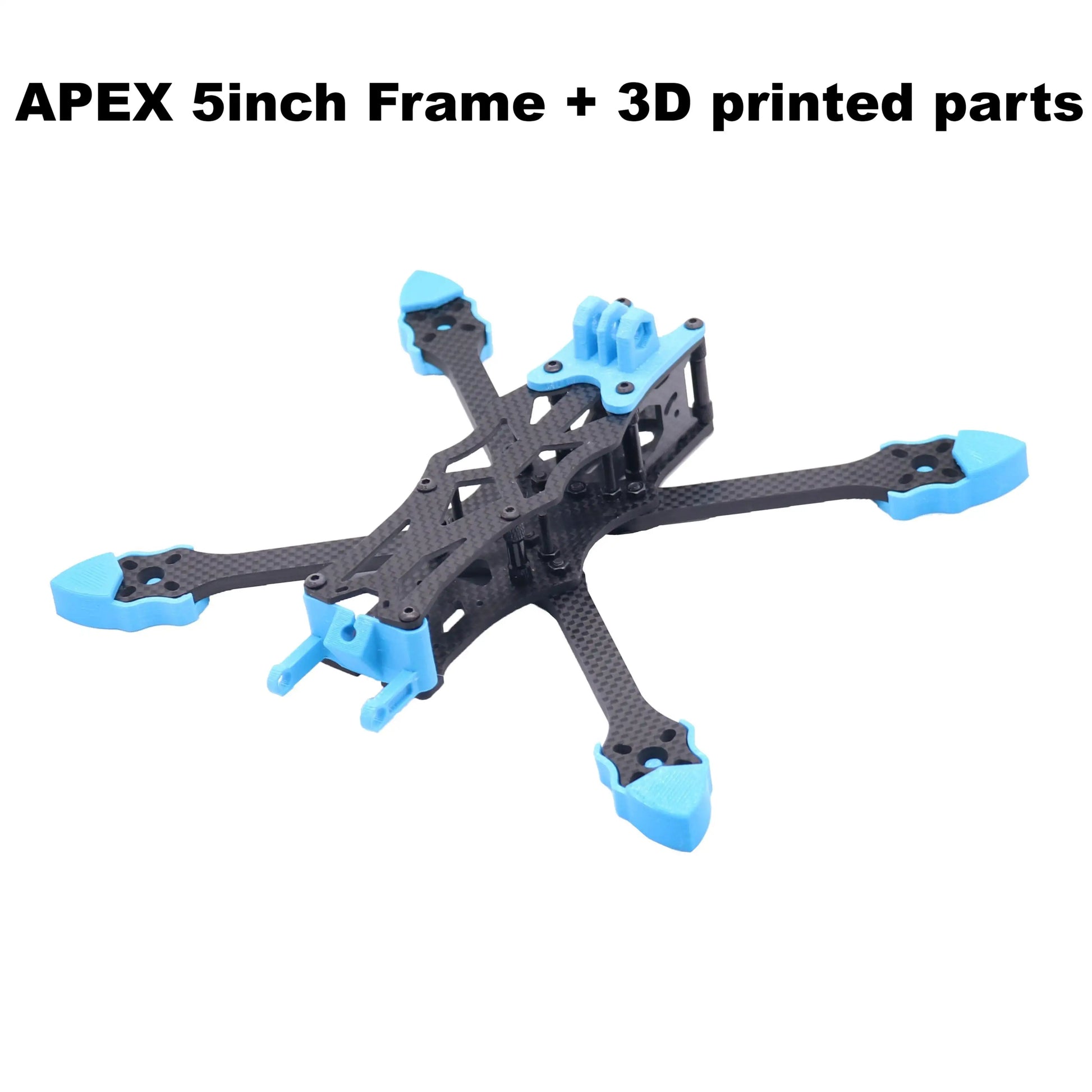

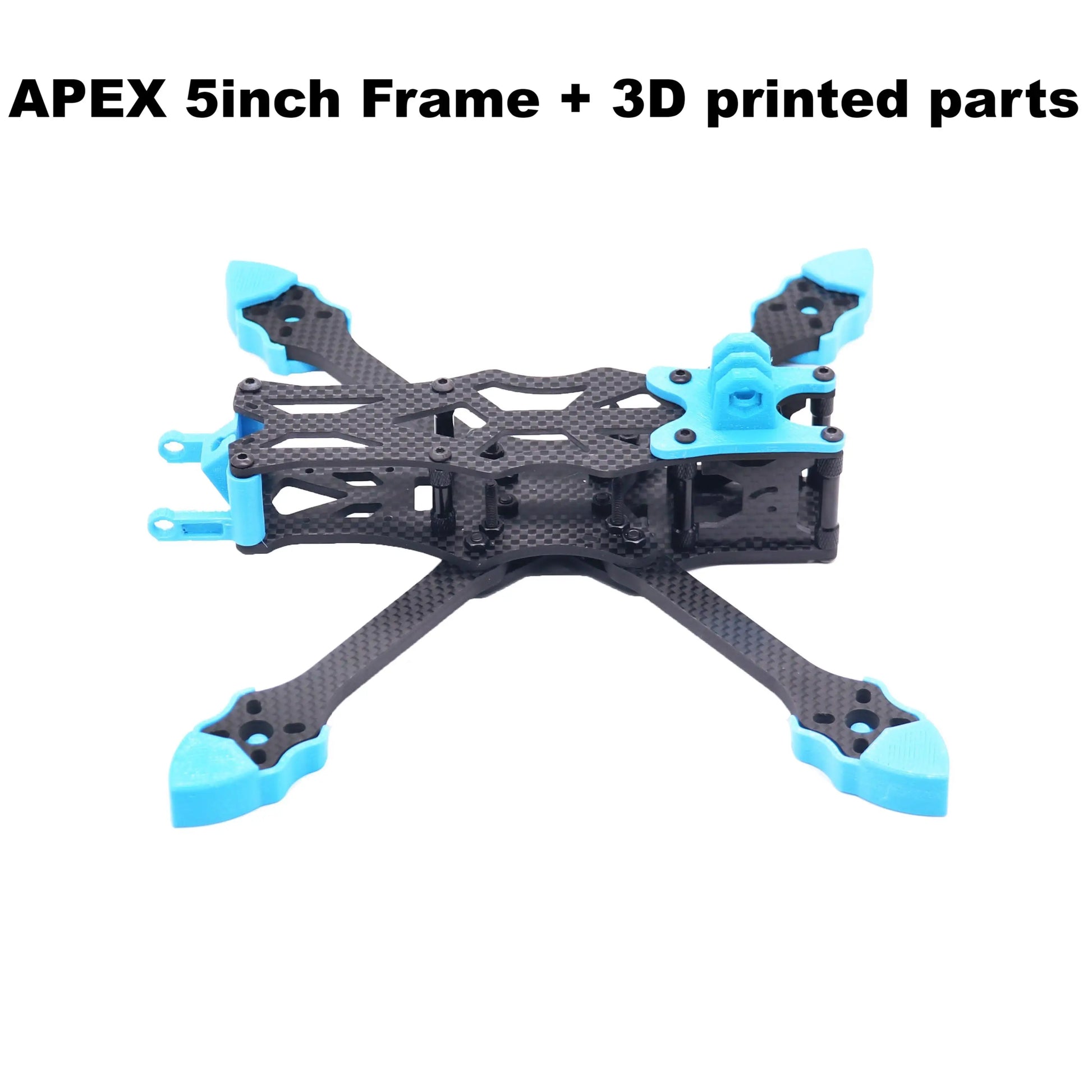

3D print(should choose with 3D Print):
1 camera brackets,
4 arm tripod,
1 antenna pedestal,
Print color: Blue TPU

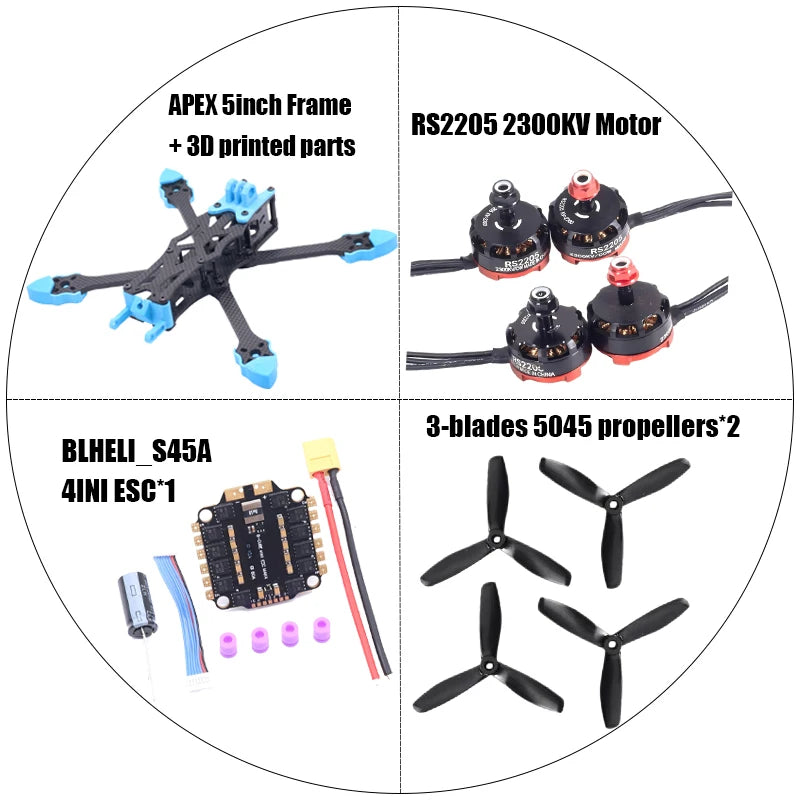

Recommended configuration:

Motor: 2205 2300KV motor
ESC: B-CUBE 4IN1-30MM 45A
Battery: 3S-4S
Paddle: 5045
Image transfer: B-CUBE VTX1000

BLHELI_S 45A 4IN1 3-6S Brushless ESC

BLHELI_S 45A 4IN1 3-6S Brushless ESC

Size: 41*39.5*5mm

Hole distance: 30.5*30.5/5mm

Weight: 13g

Input voltage: LIPO 2-6S

Continuous current: 45A

Maximum current: 50A (10 seconds)

Processor: EFM8BB21F16G

Firmware: BLS J_H_30_REV16_7

Drive signal support: DShot300-600/Multishot/Oneshot/PWM

Current sensor: Support

The ESC has filter capacitors on board to suppress the electromotive power transmission, stabilize the battery voltage and protect the components of ESC vuelo control precision
