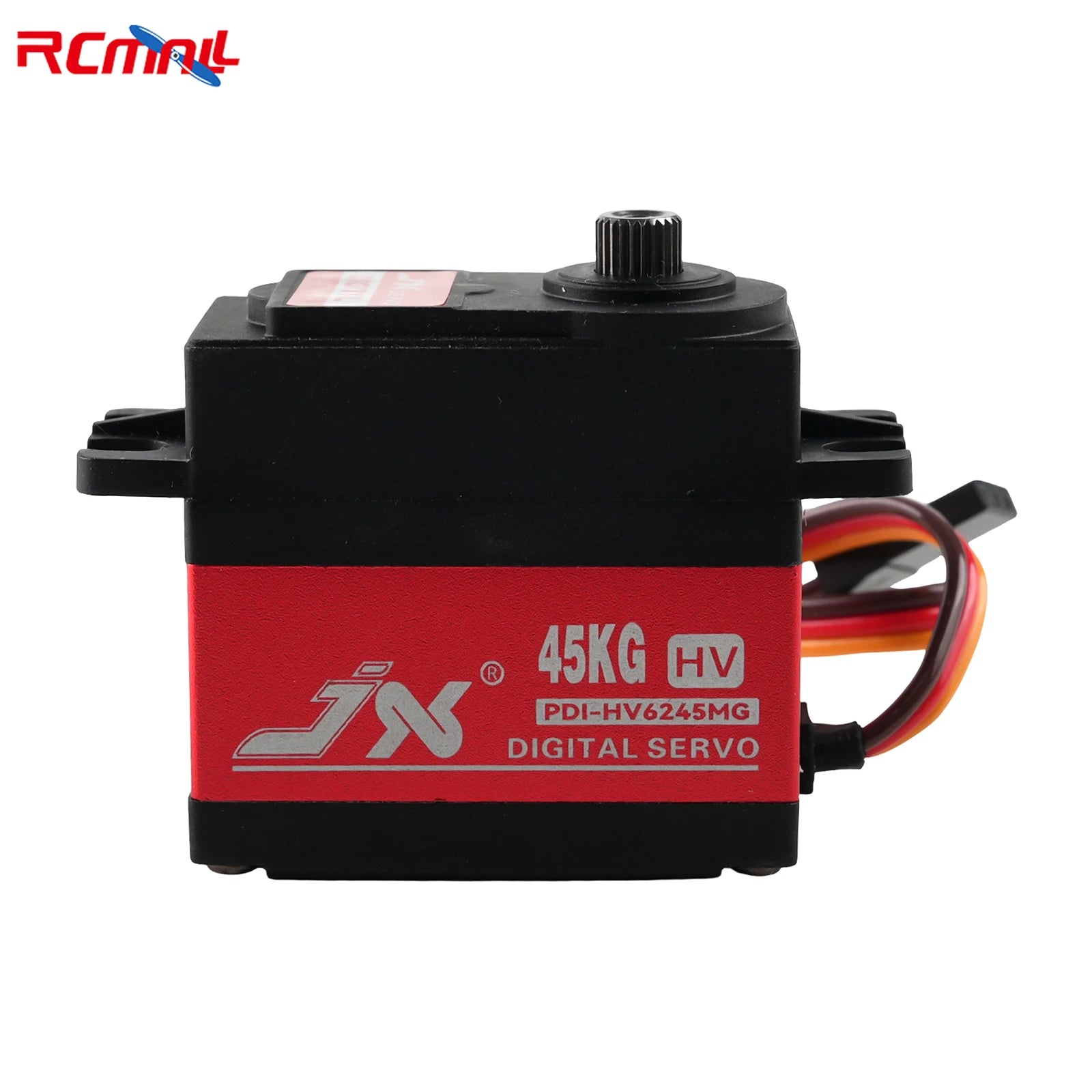

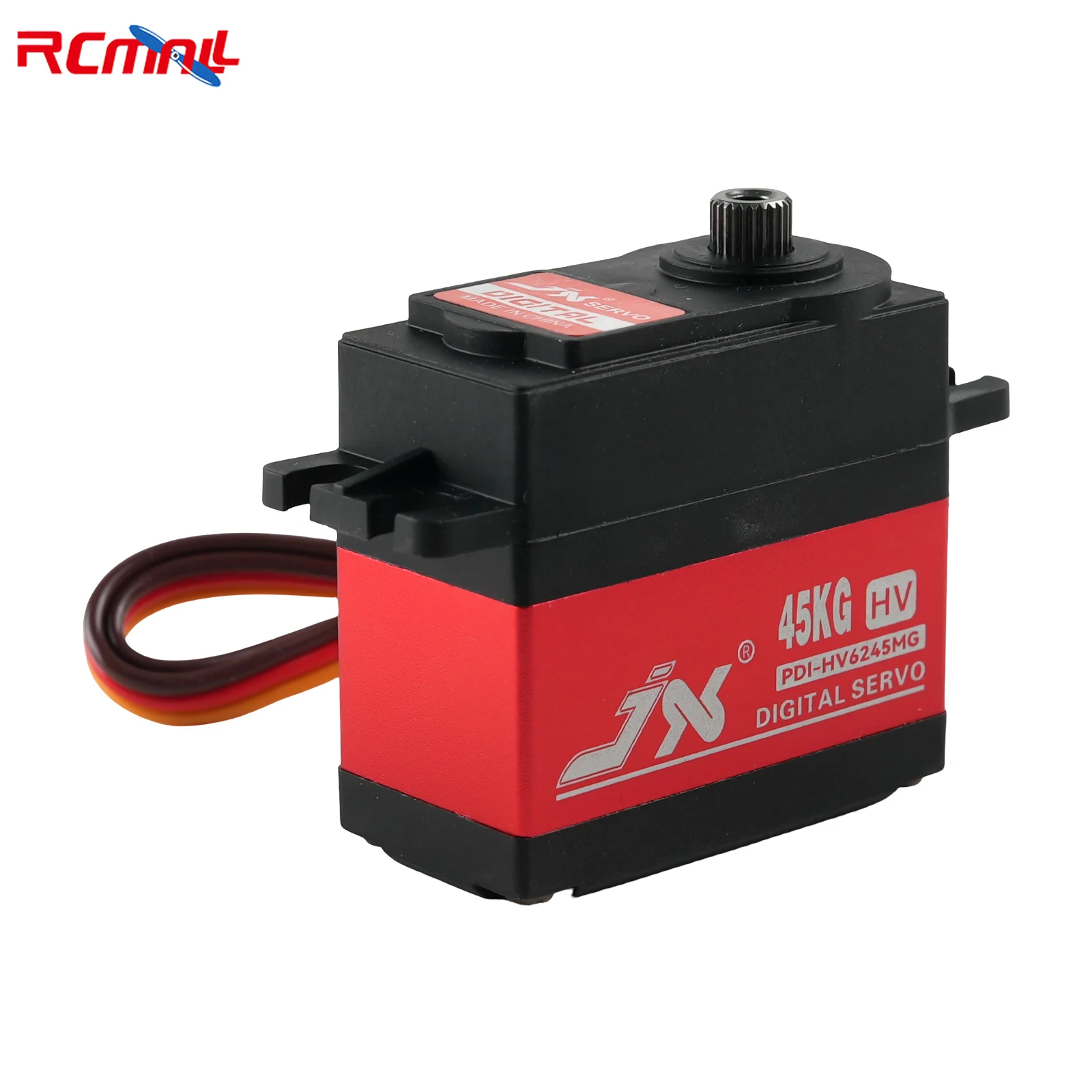

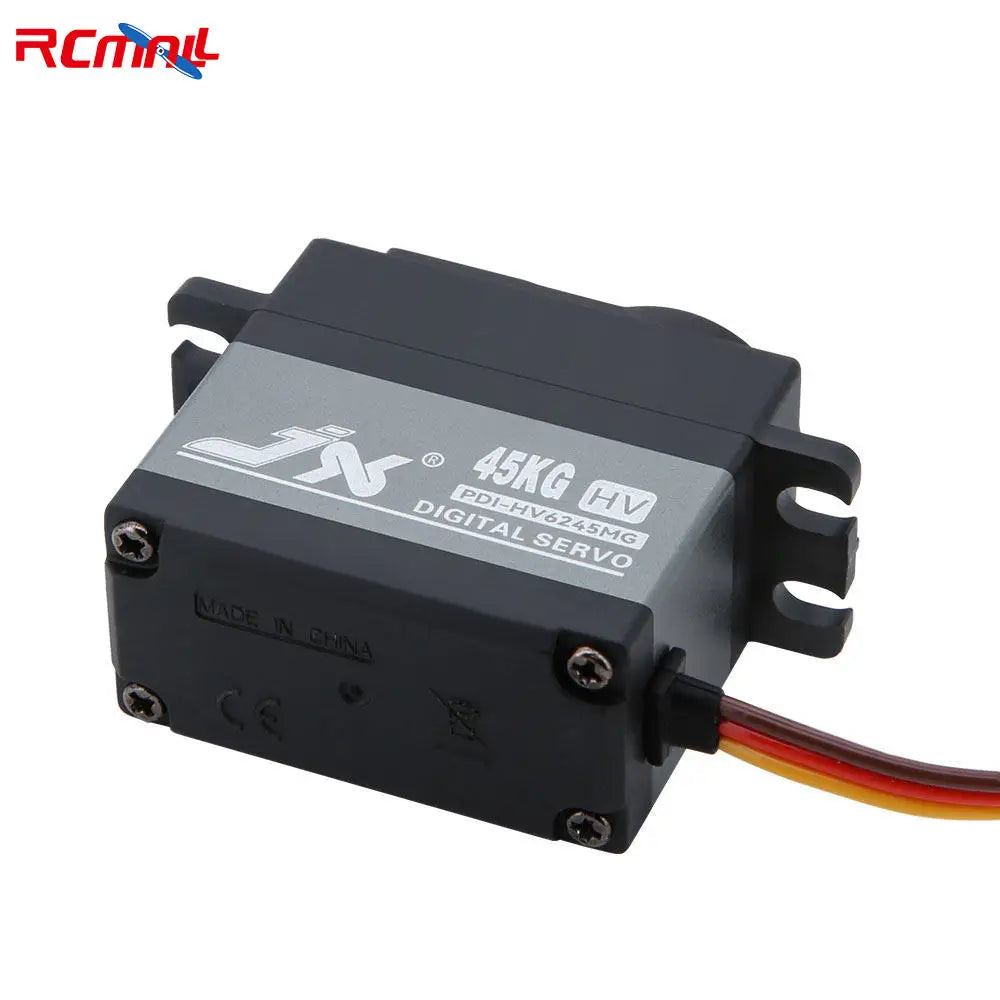

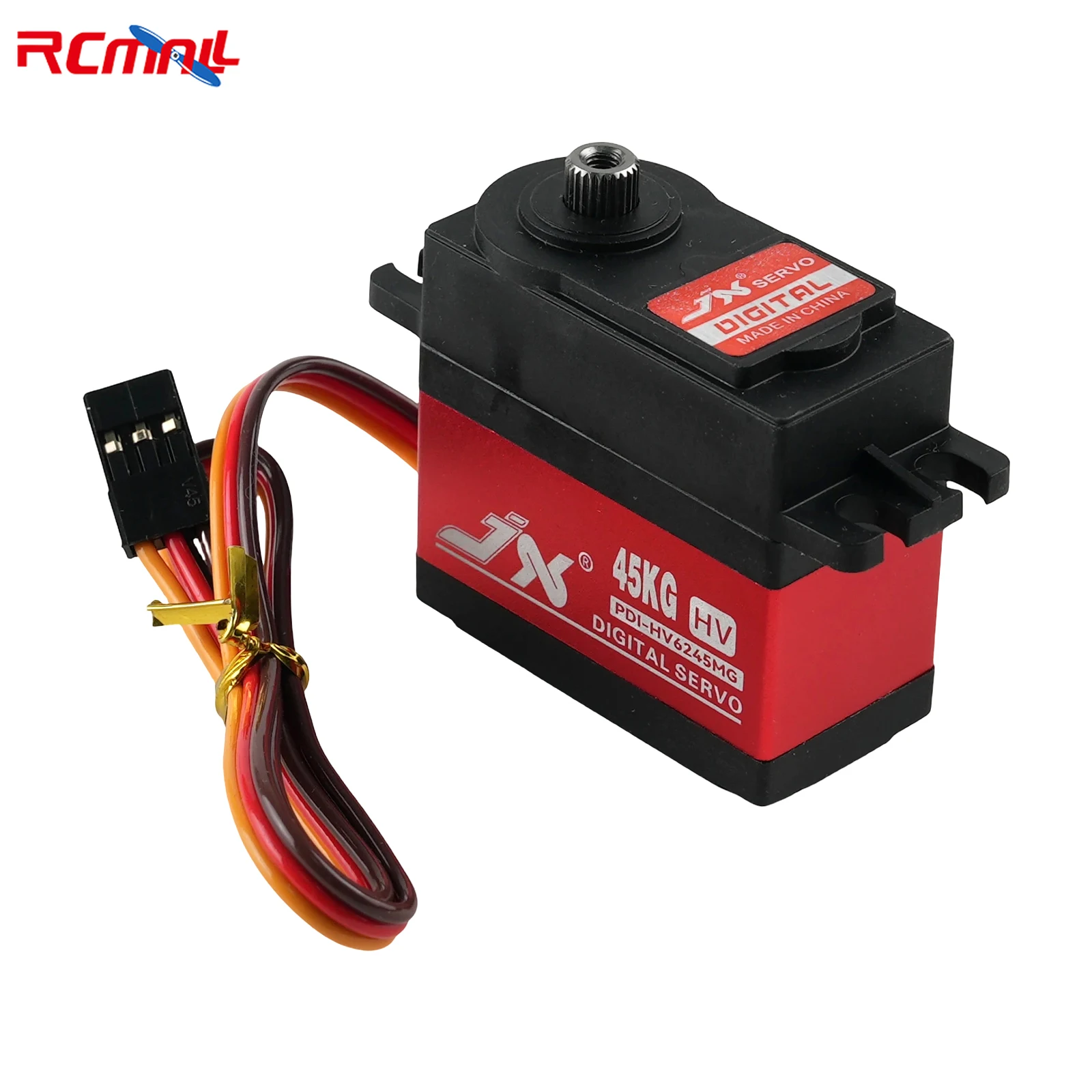

JX Servo 8.4V 45KG High Torque Metal Gear Digital Servo Robotic Servos for RC Car Robot Airplane Drone PDI-HV6245MG
JX Servo 8.4V 45KG High Torque Metal Gear Digital Servo Robotic Servos for RC Car Robot Airplane Drone PDI-HV6245MG
Regular price
$46.99 USD
Regular price
$0.00 USD
Sale price
$46.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: RCmall
Certification: CE
High-concerned chemical: None
Model Number: PDI-HV6245MG
Origin: Mainland China
JX Servo 8.4V 45KG High Torque Metal Gear Digital Servo Robotic Servos for RC Car Robot Airplane Drone PDI-HV6245MG
Product Specification
Brand: JX Servo
Model: PDI-HV6245MG
Product Name: 45KG Standard Digital Servo (High Torque Metal Gear)
Operating Voltage: 6.0V – 8.4V
Operating Temperature: −20 °C to +60 °C (−40 °C requires special note)
Dead Band Width: 2 μs
Operating Frequency: 1520 μs / 300 Hz
Control System: PWM (Pulse Width Modulation)
Rotation Angle:
Control board: 180°
Remote control: 90–120°
Neutral Position: 1500 μs central point
Rotation Direction: Counter-clockwise
Pulse Width Range:
500–2500 μs = 180°
900–2100 μs = 120°
Stall Torque:
(6.0V) 35 kg·cm
(8.4V) 45 kg·cm
Operating Speed:
(6.0V) 0.15 sec / 60°
(8.4V) 0.13 sec / 60°
Motor Type: High-quality core motor
Gear Material: Metal gears
Output Spline: 25T (standard universal spline)
Bearing: 2BB
Cable Length: JR 260 mm

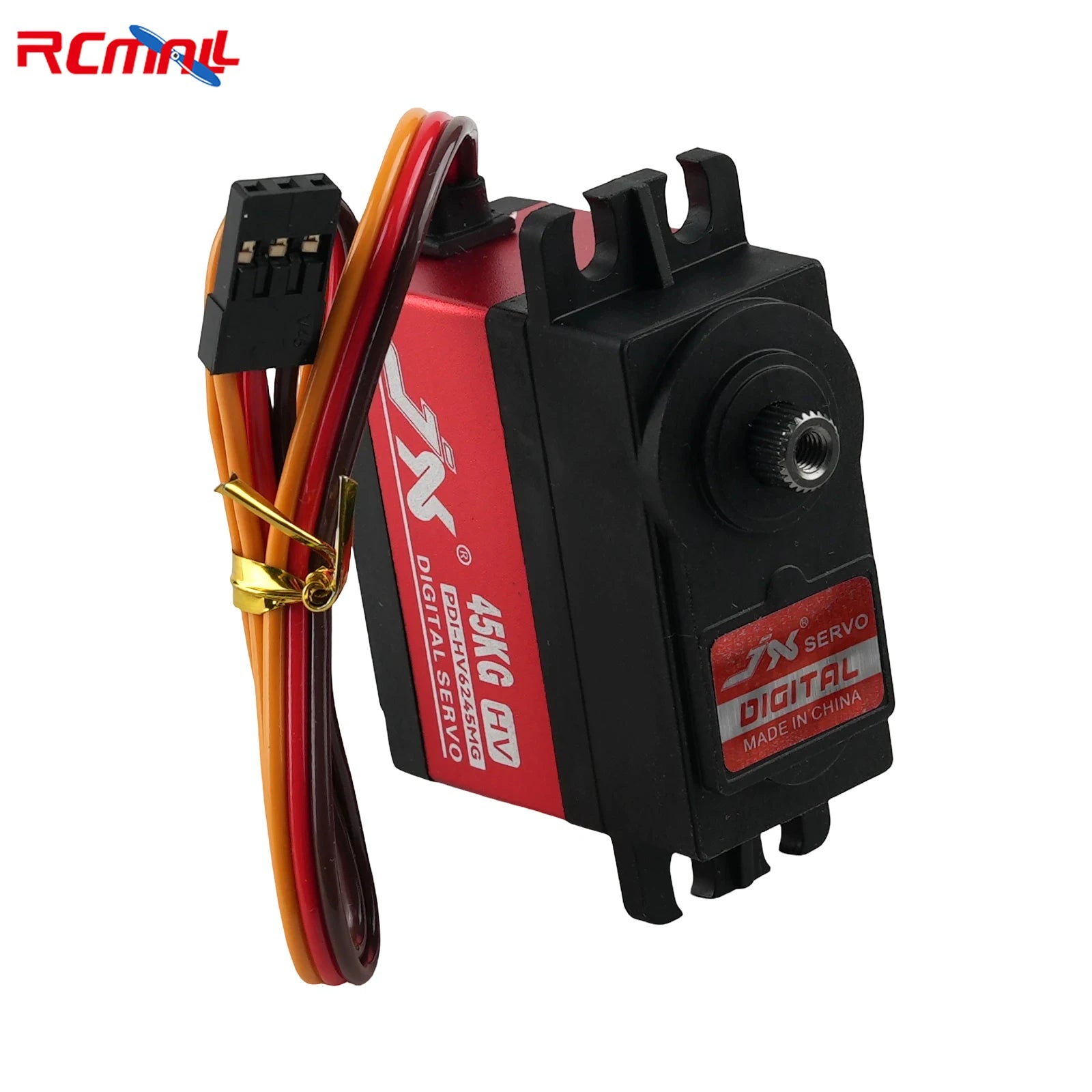

Wire Colors:
Brown wire: Negative (GND)
Red wire: Positive (V+)
Orange wire: Signal
Dimensions: 40.5 × 20.2 × 40.3 mm
Weight: 62 g

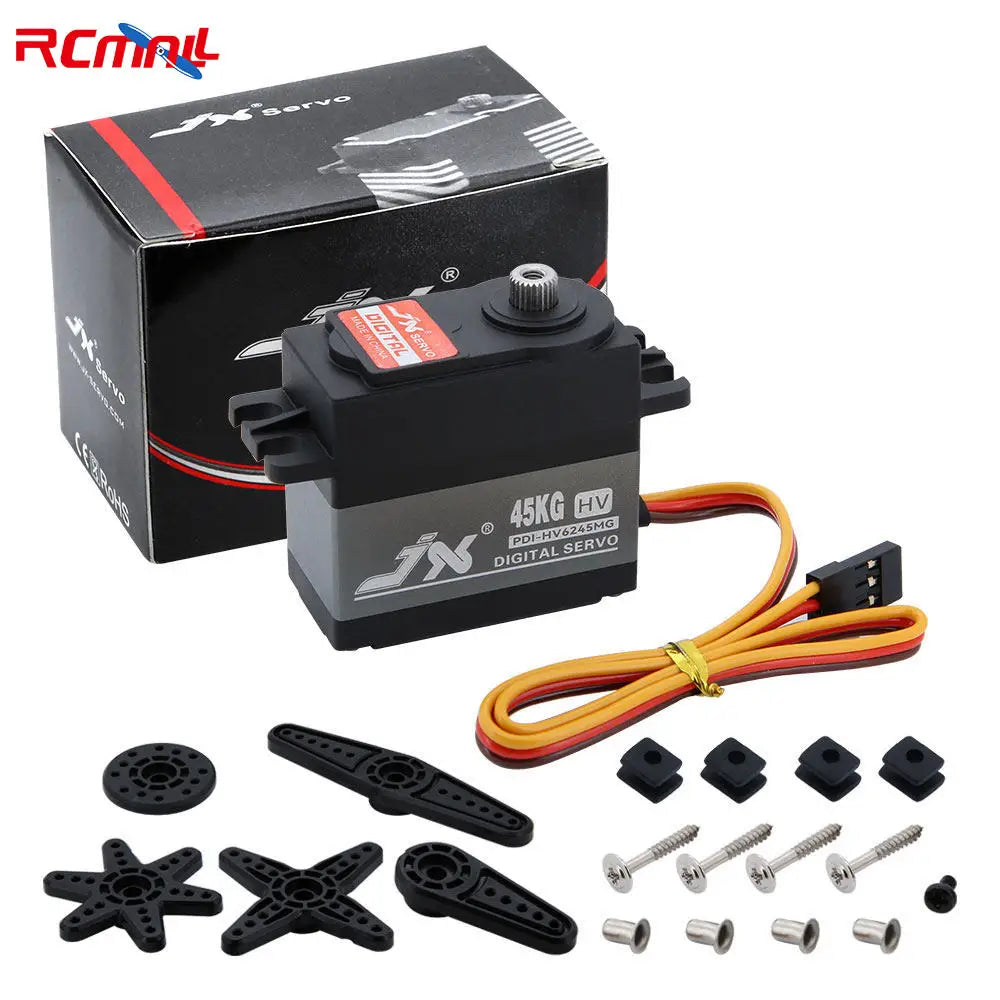

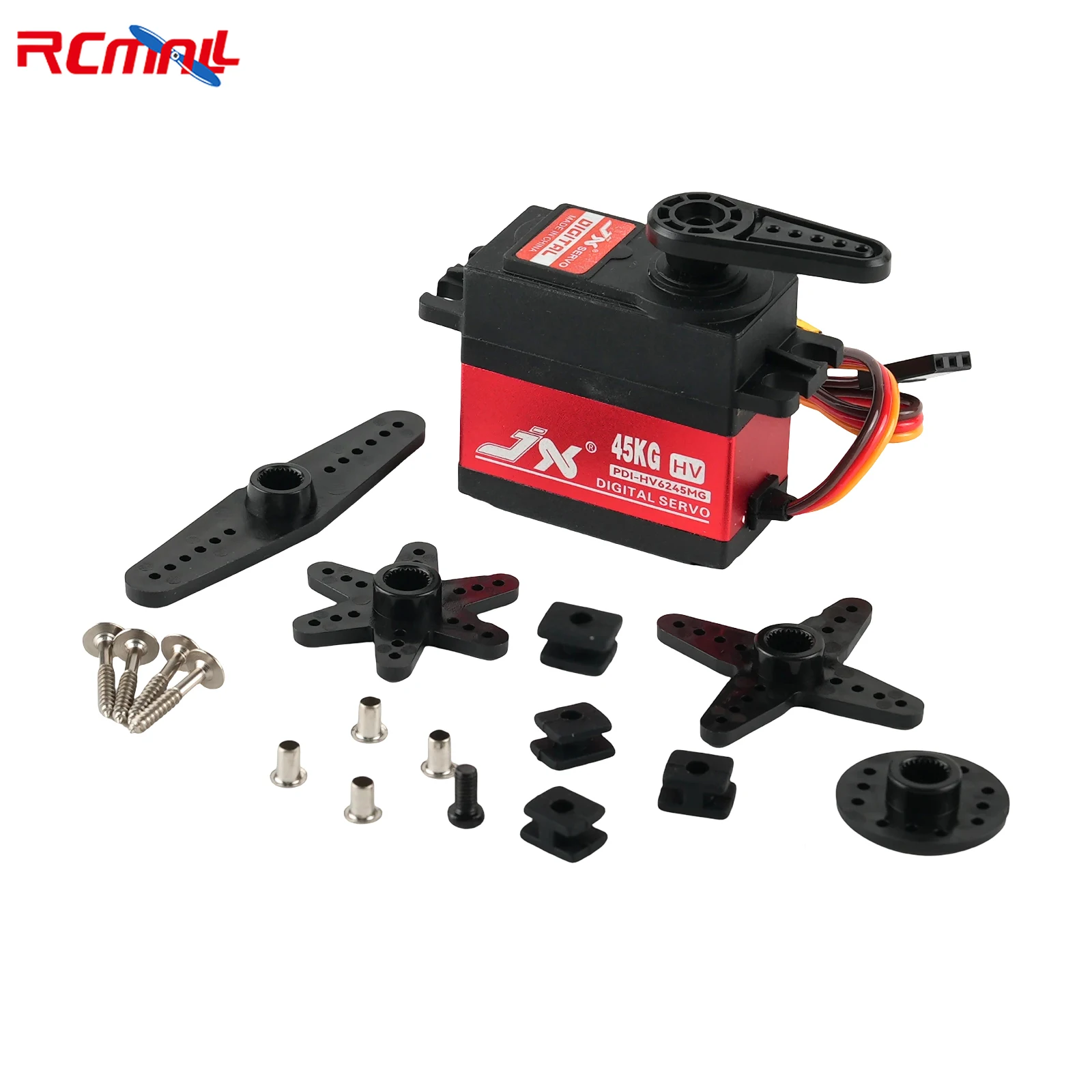

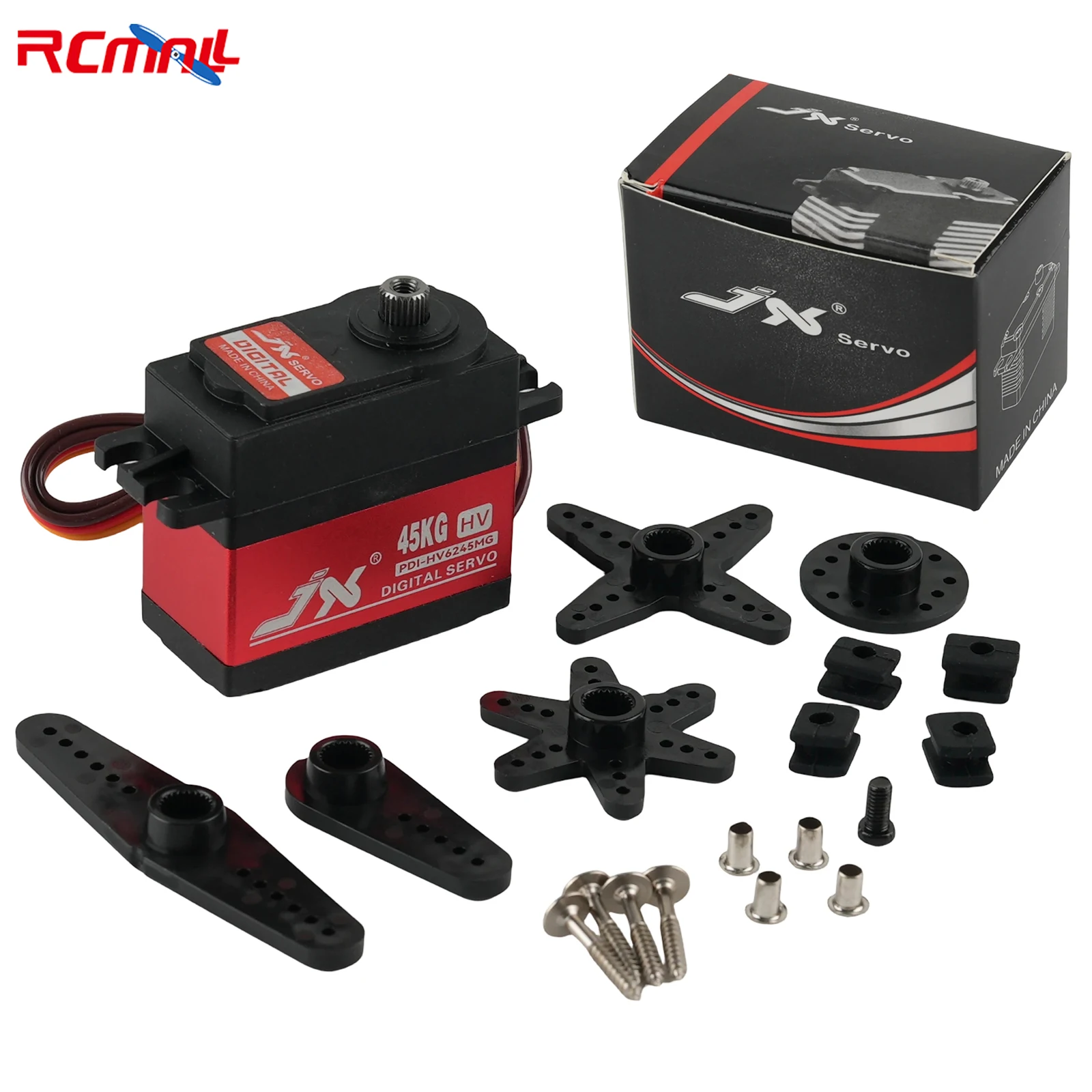

Package Includes:
1 × Servo
