SPECIFICATIONS

Battery Included: no

Brand Name: INKBIRD

Certification: CE

Display Size: 1.9 Inches & Under

Display Type: DIGITAL

Electronic: No

High-concerned chemical: None

Is Smart Device: no

Max Measuring Temperature: 49°C & Under

Model Number: ITC-306T

Origin: Mainland China

Style: Standing Station

Theory: Temperature Controller

Use: Household

INKBIRD 220V ITC-306T Heating Cooling Pre-wired Temperature Controller With Time Function For Breeding and Planting Pet Breeding

Main features

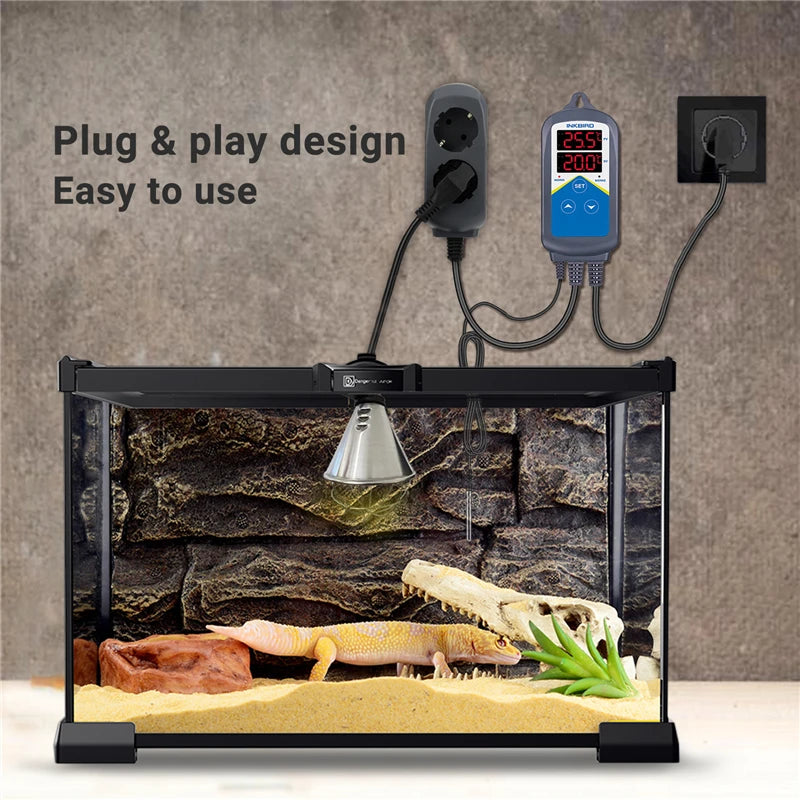

Ÿ Plug and play design, easy to use;

Ÿ Dual time cycle setting during 24hours, can be set different temperature fromday and night on the basis of the physical needs of animals and plants;

Ÿ Support reading with Centigrade or Fahrenheit unit;

Ÿ Maximum output load: 1200W(110V)/2200W(220V);

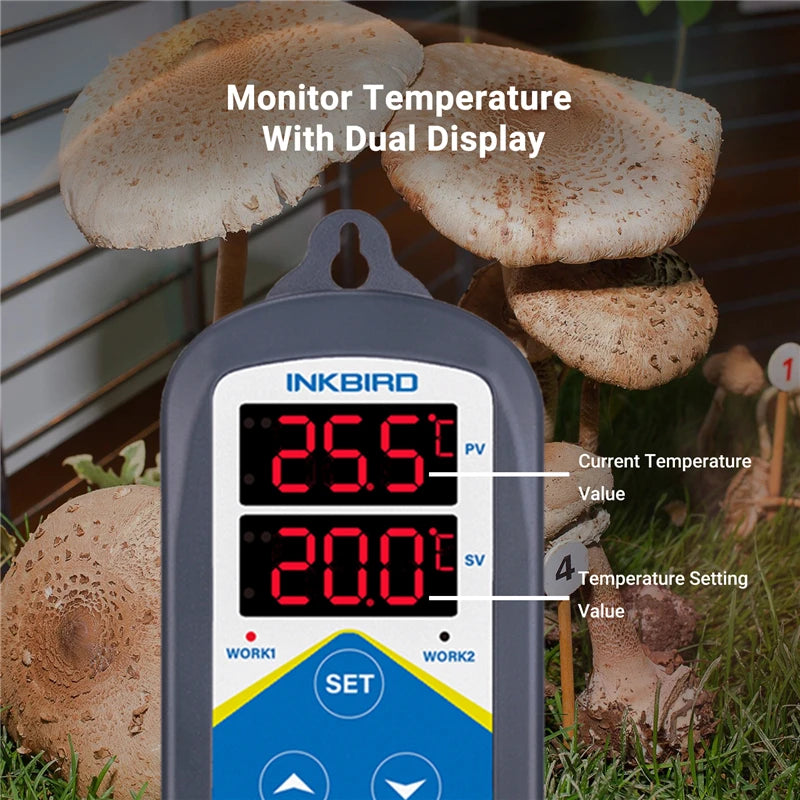

Ÿ Dual display window, be able to display measured temperature and settemperature at the same time;

Ÿ Temperature calibration;

Ÿ Over-temperature and sensor fault alarm;

Ÿ Build-in ultra-capacitor, after fully filled, it can supply timer chip working for more than 20 days without electricity.

2. Specification

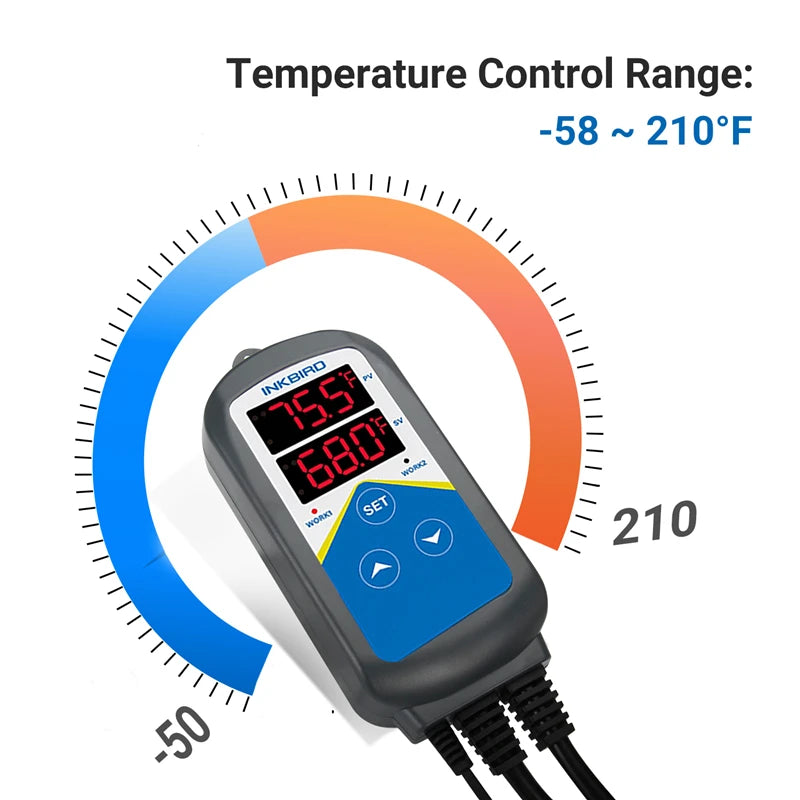

Temperature Control Range -50~99 °C / -58~210 ° F

Temperature Resolution 0.1 ° C / 0.1° F

Temperature Accuracy ±1°C (-50 ~ 70°C) / ±1°F (-58 ~ 160° F)

Temperature Control Mode On/Off Control, Heating

Input Power 100 ~240VAC, 50Hz/60Hz

Temperature Control Output Max. 10A, 100V ~240V AC

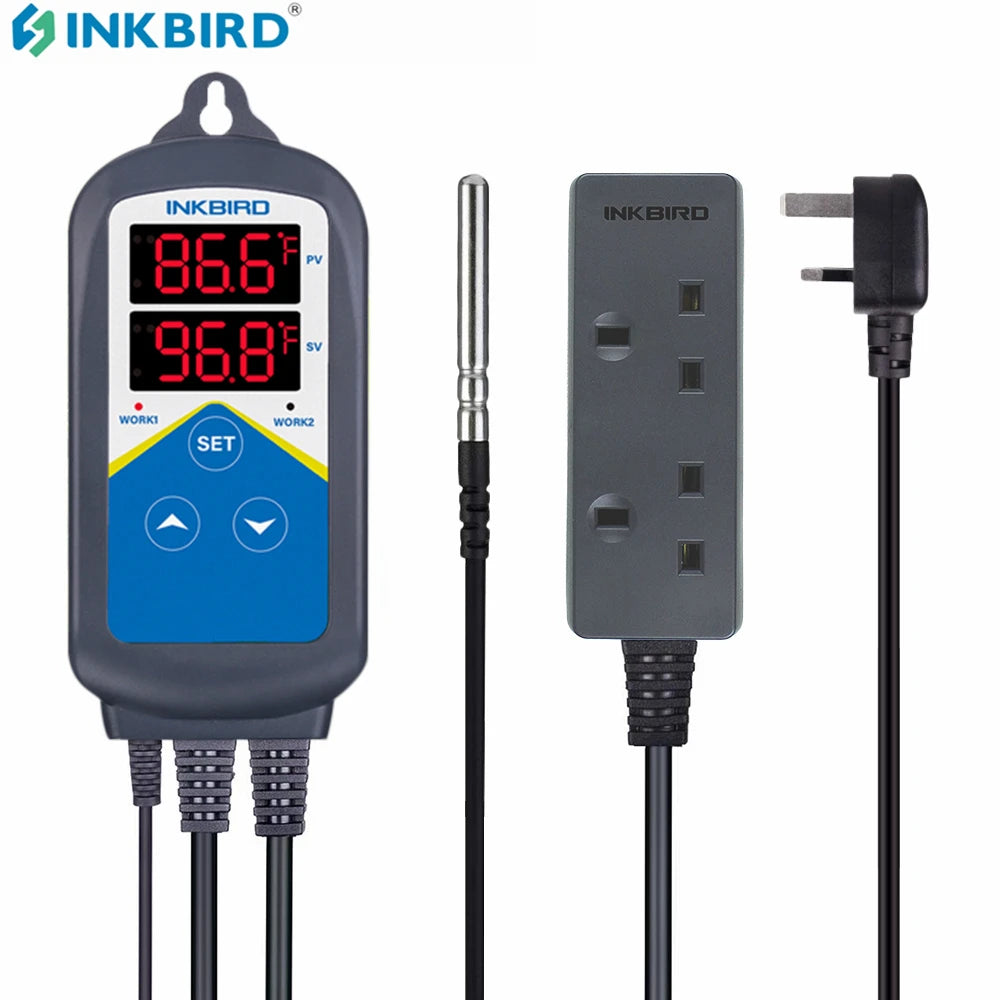

Sensor Type NTC sensor (Including)

Sensor Length 2m / 6.56ft

Relay Contact Capacity Heating (10A, 100-240VAC)

Input Power Cable Length 1.5m ( 5ft )

Output Power Cable Length 30cm ( 1ft )

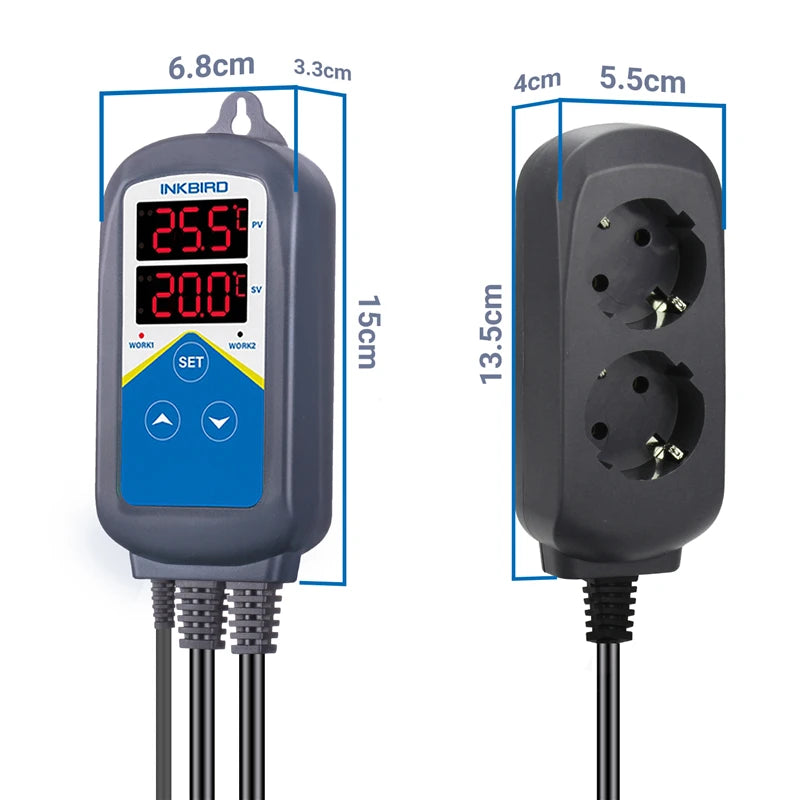

Dimension Main Body: 140x68x33mm (5.5x2.7x1.3 inch)

Socket (US Version): 85x42x24mm (3.3x1.7x1.0 inch)

Socket (EU Version): 135x54x40mm (5.3x2.1x1.6 inch)

Socket (UK Version): 140x51x27mm (5.5x2.0x1.0 inch)

Ambient Temperature -30~ 75 ° C / -22~ 167 ° F

Storage Temperature -20~ 60 ° C / -4~ 140 ° F

Humidity 20~85% (No Condensate )

Warranty 1 Year
