Features:

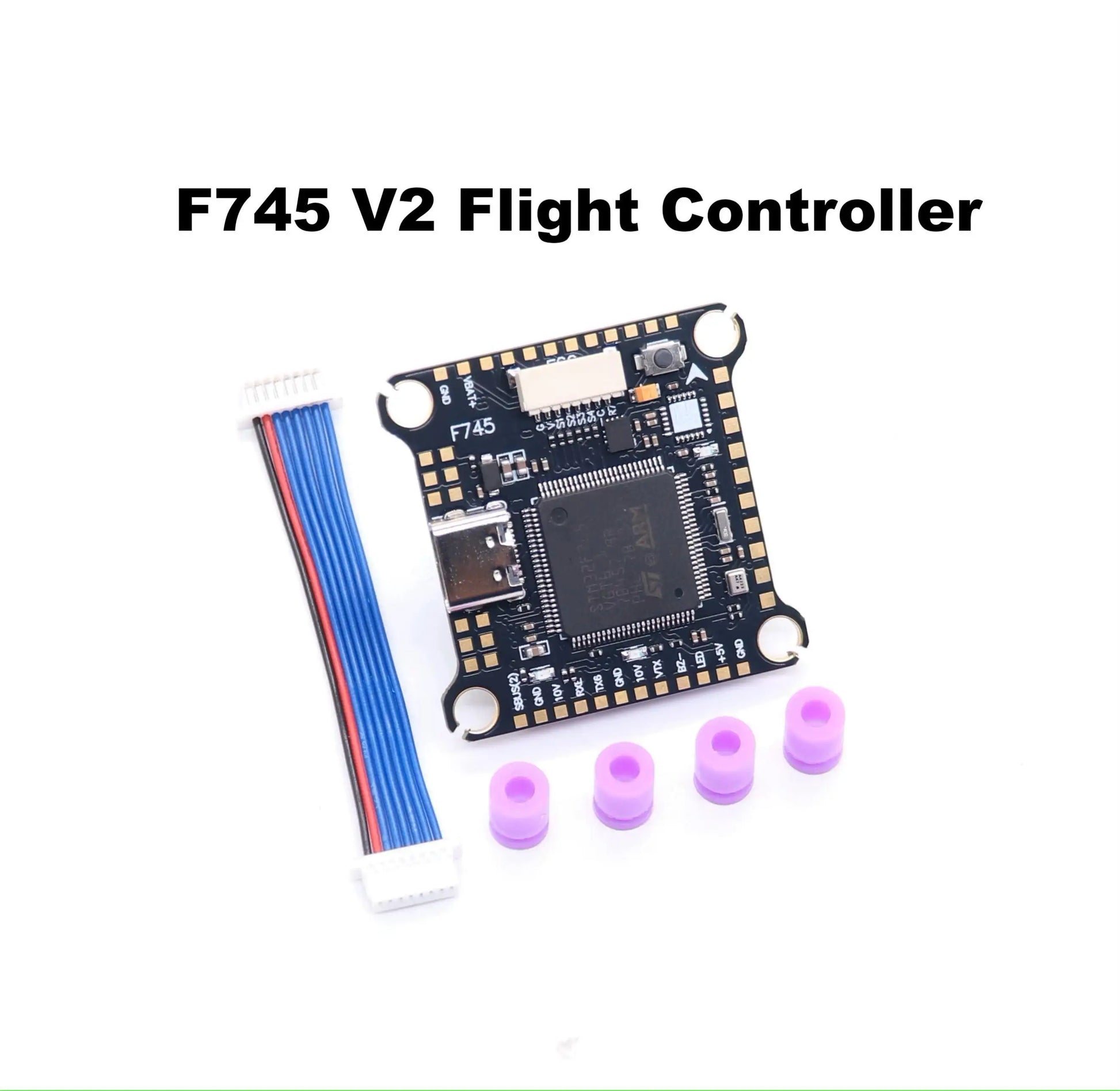

 1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
 2.  The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
 4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
 5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.

Descriptions:

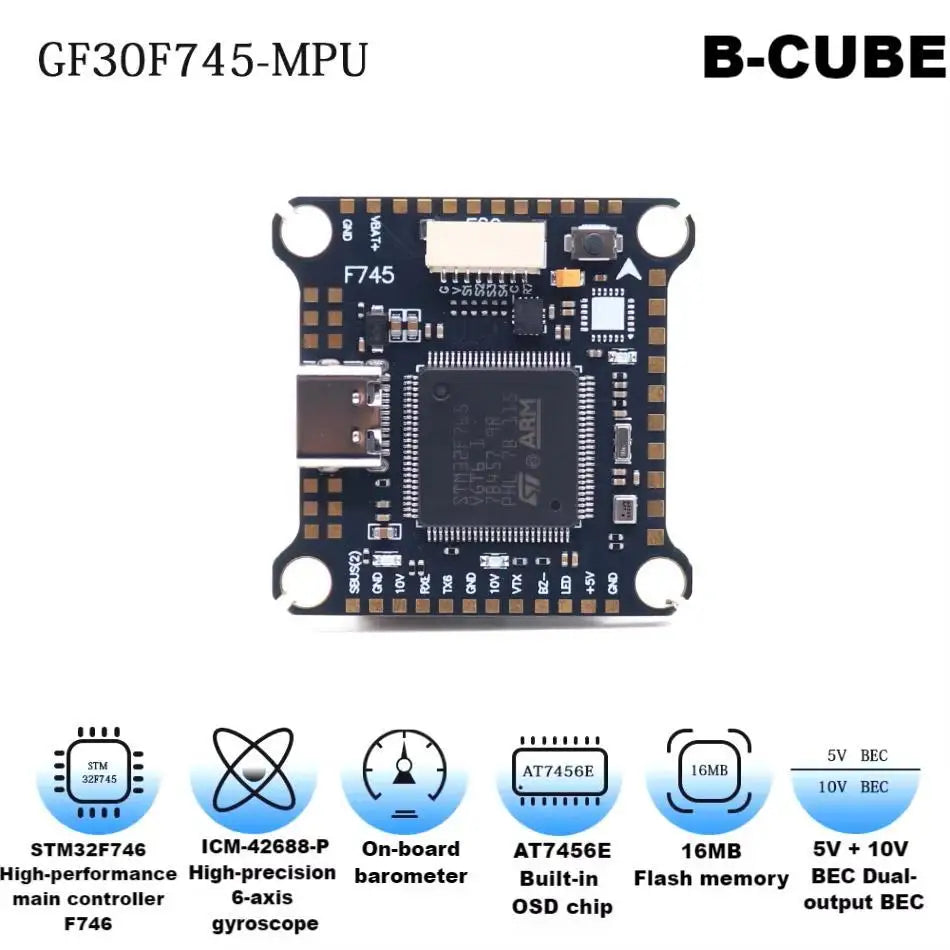

F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.

Specifications:

• Chip:STM32F746VG(216MHZ)

• Gyro:ICM-42688-P

• Barometer:DPS310

• OSD Chip:AT7456E

• Black box:16MM

• LED Program:Support

• BB buzzer:Support

• Input voltage:3-6S

• I2C Connector:Support

• BEC:5V/2.5A

• BEC:10V/2.0A

• Cam Input:Support

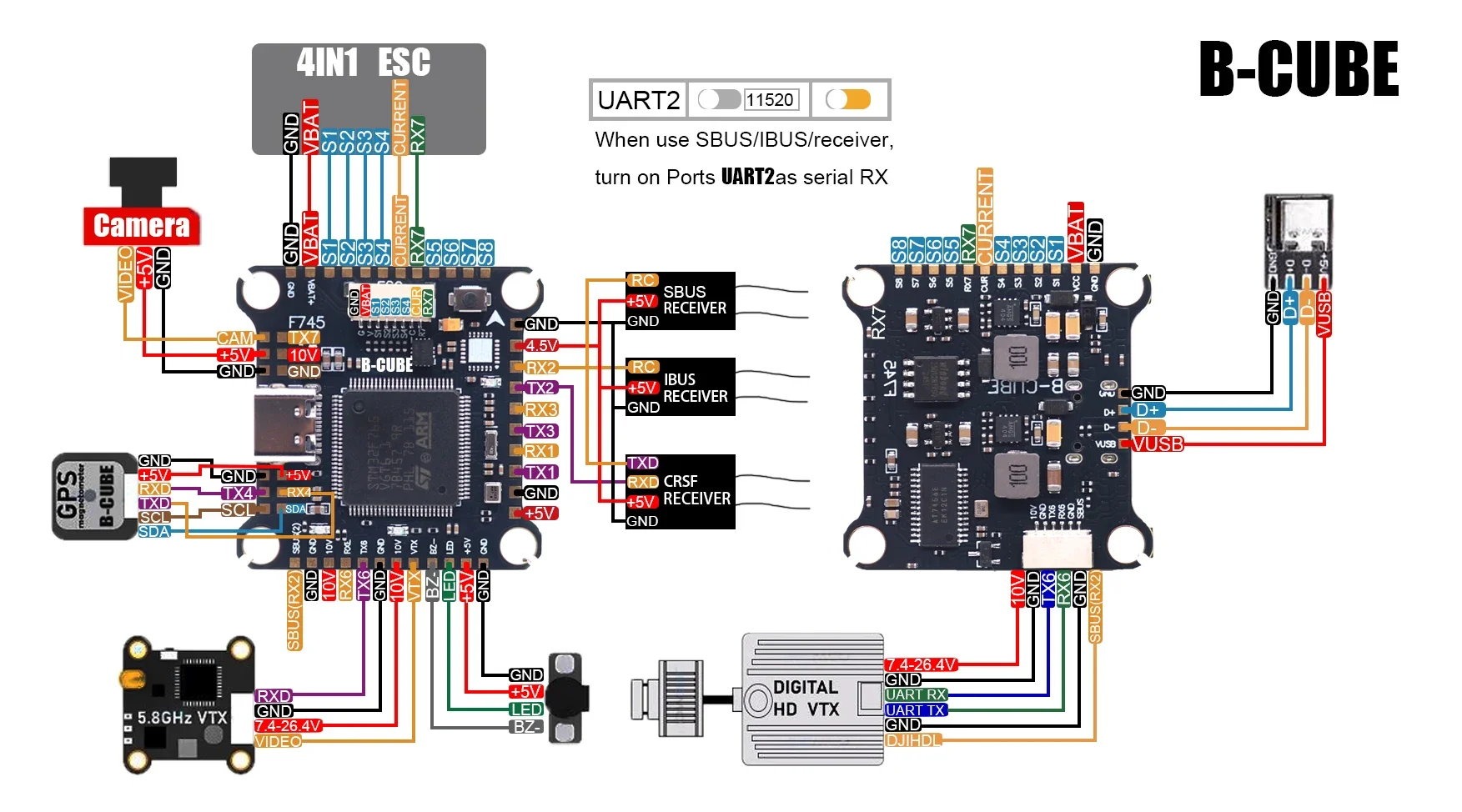

• USART:UART1,UART2.UART3.UART4.UART6.UART7

• Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX

• GPS:YES

• COMPASS:YES

• HD O3:YES

• ESC Signal:Dshoot150.Dshot300,Dshot600

• USB:TYPE-C

• Current Port:Yes.

• Voltage Sensor:Yes

• DFU Button:YES

• FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX

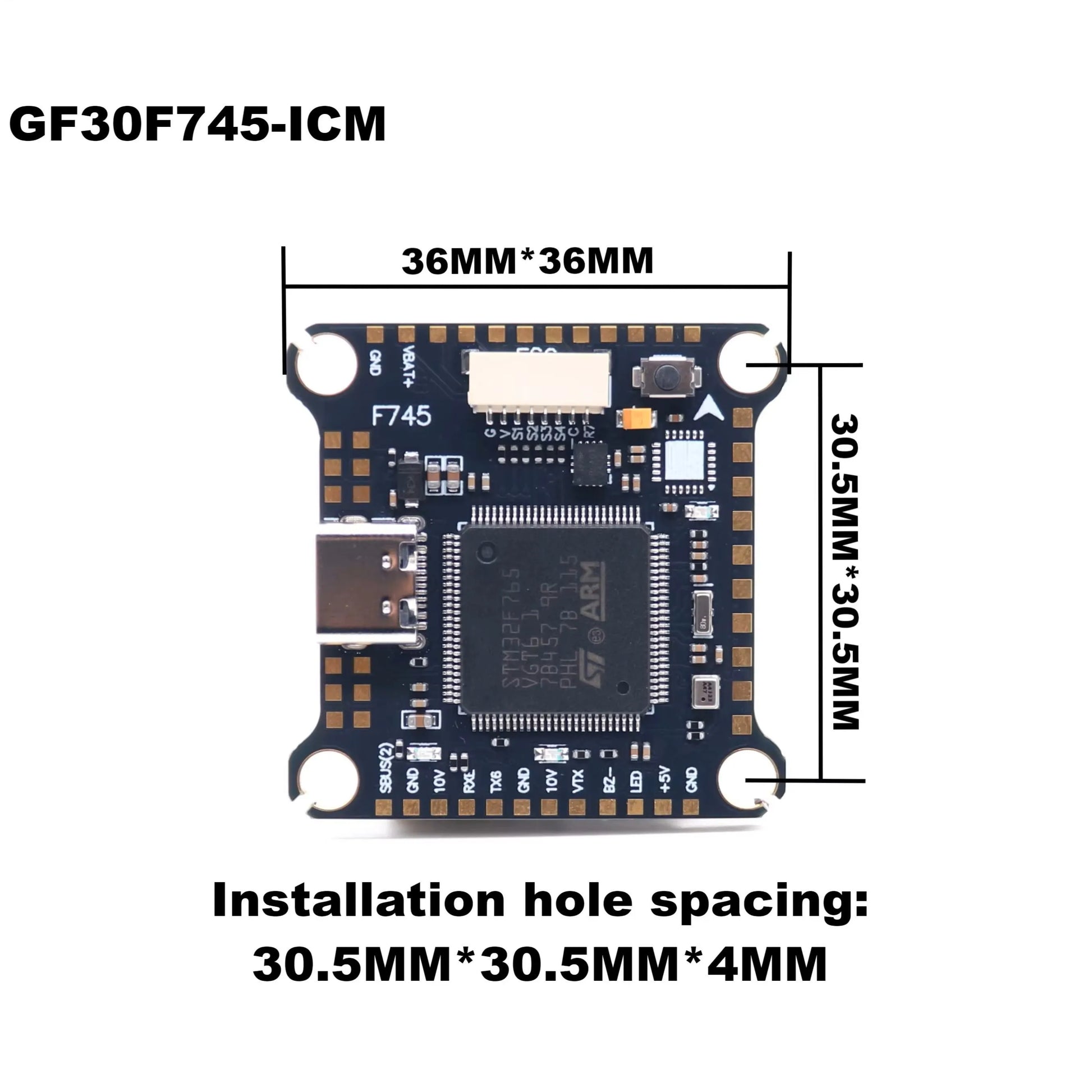

• Install hole:30.5*30.5*4MM

• Board size:36*36MM

• Weight:7.5g
